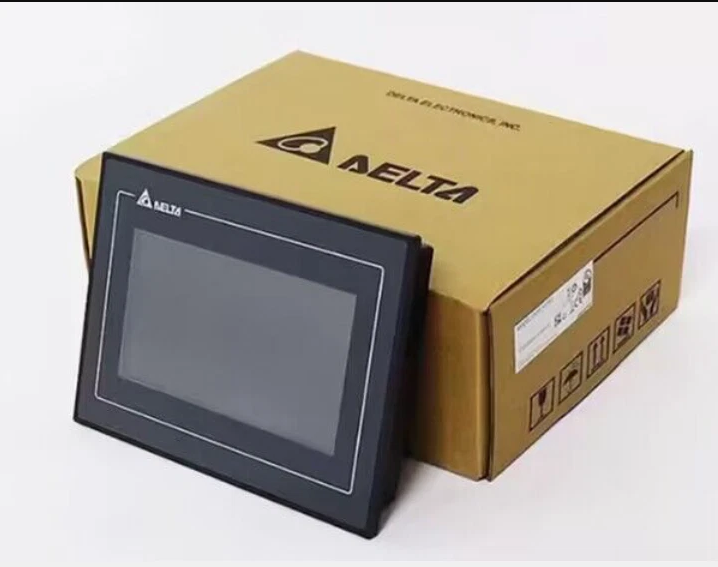

Delta HMI DOP-107BV – 7-Inch Touchscreen Human Machine Interface

Delta DOP-107BV – Industrial HMI Touchscreen Panel

The Delta DOP-107BV is a feature-rich 7-inch Human Machine Interface designed for intuitive and efficient control of industrial automation processes. It delivers a bright, high-resolution 800×480 TFT LCD display combined with a responsive 4-wire resistive touchscreen, making it ideal for demanding factory floor environments.

Powerful Connectivity & Integration

Equipped with dual RS-232/RS-485 serial ports, a USB Host port, and a USB Client port, the DOP-107BV offers exceptional connectivity. It integrates seamlessly with Delta PLCs and various third-party controllers, providing system integrators and panel builders with maximum flexibility in automation project design.

Easy Programming with DOPSoft

The DOP-107BV is programmed through Delta's proprietary DOPSoft software (V4.00 and above), which offers an extensive library of pre-built objects, templates, and macros. This significantly reduces development time and allows operators to create visually appealing and functional HMI screens with minimal effort.

Built for UAE Industrial Environments

With an IP65-rated front panel, a wide operating temperature range of 0°C to 50°C, and a slim 36 mm profile, the DOP-107BV is built to withstand the rigors of industrial environments in the UAE and Gulf region. Its compact dimensions and standard panel cut-out size (192 × 138 mm) ensure straightforward installation in control cabinets and machine panels.

What's Included

• 1× Delta DOP-107BV HMI Unit
• Mounting brackets and hardware
• Communication cable
• Quick start guide and documentation

PLC & Controller Compatibility

The Delta DOP-107BV supports a wide range of communication protocols and is compatible with both Delta and leading third-party PLC brands:

• Delta PLCs: DVP Series (DVP-ES2, DVP-EX2, DVP-SA2, DVP-SX2, DVP-SE, DVP-SS2, DVP-EC, DVP-PM, DVP-EH3), AS Series
• Siemens: S7-200, S7-300, S7-1200 (via Modbus or PPI)
• Mitsubishi: FX Series, Q Series
• Allen-Bradley: MicroLogix, CompactLogix
• Omron: CP1, CJ Series
• Modbus RTU / TCP compatible devices

Software Requirements

DOPSoft V4.00 or higher is required for programming and screen design. The software is available as a free download from Delta Electronics' official website and supports Windows operating systems.
